Dynamic Cycling Fit

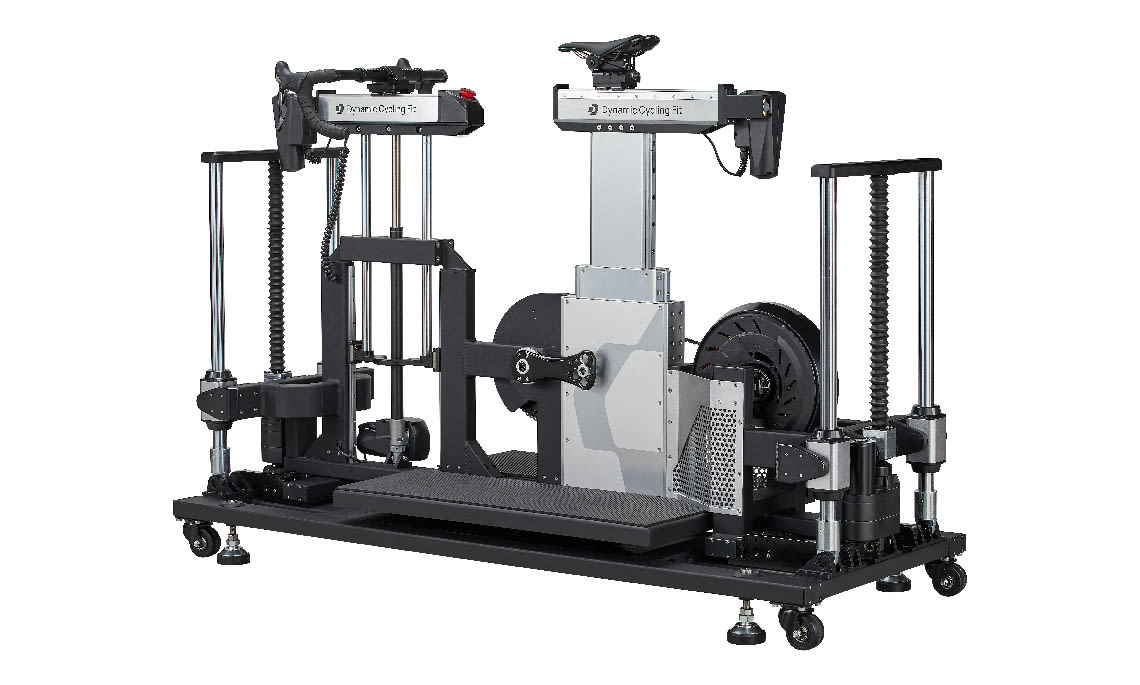

DCF Hardware
Key Features
• Control by DCF App via Bluetooth: Easily adjust settings wirelessly through the app.
• X/Y Adjustment: Equipped with two sets of horizontal and vertical electric telescopic cylinders for precise positioning.
• Wide Range of Adjustability: Accommodates riders from 145 cm to 200cm in height, with a maximum weight capacity of 160 kg.
• Saddle Mount Unit: Compatible with various saddles and features a quick tilt adjustment bolt for optimal positioning.
• Handlebar Mount Unit: Works with different handlebar shapes and diameters, including tri bars, drop bars, and flat bars.
• Crankset Variety: Includes four sets of cranksets, allowing for extensive crank length adjustability from 135 mm to 180 mm in 2.5 mm increments.
• Q-Factor Adapters: Comes with nine sets of Q-factor adapters, adjustable from 140 mm to 180 mm in 5 mm increments.
• Gradient Simulators: Features uphill and downhill gradient simulators with a range of ±15°.
• Built-in Power Meter: Spider-type power meter with a resistance freewheel, simulating real-world pedaling power output from 20W to 2,500W.
• Emergency Stop Button: Easily accessible emergency stop button with a power indicator for safety.
• Sturdy Construction: Four steady columns with leveling feet for platform height adjustment.
• Mobility: Four wheeled casters for easy movement.
• Power Options: Includes power cords and adaptors for both 120V and 220V systems.
• EU Plug Adapter: Comes with an EU plug adapter for compatibility.
| Main Structure | |
|---|---|
| Geometric | Handlebar clamp range (330,448.2)~(610,833.2) |
| Center of saddle rail range (-80.7,356.4)~(-259.3,911.4) | |
| Slope range -15~+15° | |
| Load | 160kg |
| Noise | 60-120 rpm, <75dB from the noise source 40cm |
| Adjustment | Electric, and have kill switch. |
| Vertical Adjustment | No-load full-stroke telescopic in 60 seconds (2 sets of electric cylinders) |
| Horizontal Adjustment | No-load full-stroke telescopic in 35 seconds (2 sets of electric cylinders) |
| Handlebar | Clamping structure, 30 seconds without tool change |
| Saddle | Clamping structure, 60 seconds |
| Q-Factor | 140-180m, 5mm/step. Replacement locking module, 180 seconds replacement |
| Crank | 135-180mm, 2.5mm/step. Replacement locking module, 180 seconds replacement |
| Weight | 200 Kg |
| Volume | Length/ width/ height: 1803/ 700/ 978mm |
DCF Bike Lite
Key Features
• Realistic cycling experience with responsive electronic resistance and a 50 lb freespinning flywheel.
• Accurate dual-sided power meter.
• Tool-free adjustment of saddle and handlebar position, compatibility with various handlebar styles, and the five most popular crank lengths, all in one convenient unit.
• Customizable electronic shifting with sprint buttons.
• Quiet and smooth Gates belt drive.
• Compatible with popular training and simulation apps.
• Q-Factor Adapters: Comes with nine sets of Q-factor adapters, adjustable from 140 mm to 180 mm in 5 mm increments.
| Main Structure | |
|---|---|
| Weight | 138 lbs / 62.5 kg |
| Dimensions (L×W×H mm) | 58 in Length x 22.2 in Width x 46.7 in Height |
| 148 cm x 56 cm x 124 cm | |
| Drive System | CarbonGlyde featuring Gates® Carbon Drive™ carbon fiber belt |
| Frame Material | High-strength Steel |
| Flywheel Type | Freewheel |
| Flywheel Weight | 50 lbs / 22.6 kg |
| Connectivity | ANT+ and Bluetooth |
| Power Meter | Stages Power LR (dual-sided power meter) |
| Power Accuracy | + / - 1.5% |
| Maximum Power | 2200 Watts at 130 rpm |
| Maximum Virtual Gradient | 25% |
| Crank Positions | 165 mm, 170 mm, 172.5 mm or 175 mm |
| Q-Factor | 157 mm |
| User Height Range | 4’ 10” in to 6’ 10” in / 1.47 m to 2.08 m |
| Maximum User Weight | 300 lbs / 136 kg |
DCF LED Foot Scanner
Key Features
• Tangential LED Lighting: Provides a visual indication of arch type.
• Colored LED Options: Offers a wide array of color choices for customization.
• Wireless Remote Control: Allows for convenient operation and adjustments.
Product Spec
• Dimension/Size: 470*470*110mm
• Weight: 10kg
• Voltage: 24V
• Fuse: No Fuse
• Connection: 2.1 mm jack plug
• Maximal Weight: 150 Kg
Contents:
• Led Foot Mirror
• Power Supply 260Vac/24Vac (with power cable)
• Remote Control
DCF Custom Insole Heater
Key Features
• Removable Ceramic Hobs: Protect your hands during the heating process.
• Built-in Timer: Configures a complete heating cycle to ensure that the insoles are adequately warmed for molding.
• Dual Built-in Air Fans: Maintain a consistent working temperature for optimal heating performance.
Product Spec
• Dimension/Size: 440 x 370 x 200mm
• Weight: 12kg
• Voltage: 210-230 Vac 50 Hz
• Power: 1200W
• Fuse: 5 x 20 mm 6.3A Temporise
• Working Surface: Vitroceramic
• Heating system: Infrared Bulbs(300W) *4
• Heat dissipation: Air Cooler Fan(68 m³ / h) *2
• Timer: 0 ~ 3.5 minutes
• Power connector with fuse drawer
Contents
• DCF Insole Heater
• Removable Ceramic Hob
• 230VAC power cord
• US Plug Adapter (Type A)
DCF VacuForm Insole Tool
Key Features
• Footprint Pockets: Filled with microbeads to mold directly to the shape of your foot.
• 3-Button Auto-Arch Corrector: Offers adjustable settings at 15 mm, 30 mm, and 45 mm for personalized arch support.
• Vacuum System: Presses the heated insoles into the footprint using a diaphragm top cover for a precise fit.
Product Spec
• Dimension/Size: 630 x 610 x 100mm
• Weight: 24kg
• Voltage: 24V
• Fuse: No Fuse
• Connection: 2.1 mm jack plug
• Maximum Weight: 140 Kg
Contents
• Thermofit
• Power Supply
• Arch Corrector + Separator (mounted in the machine)
• Pressing Top Cover (mounted in the machine)

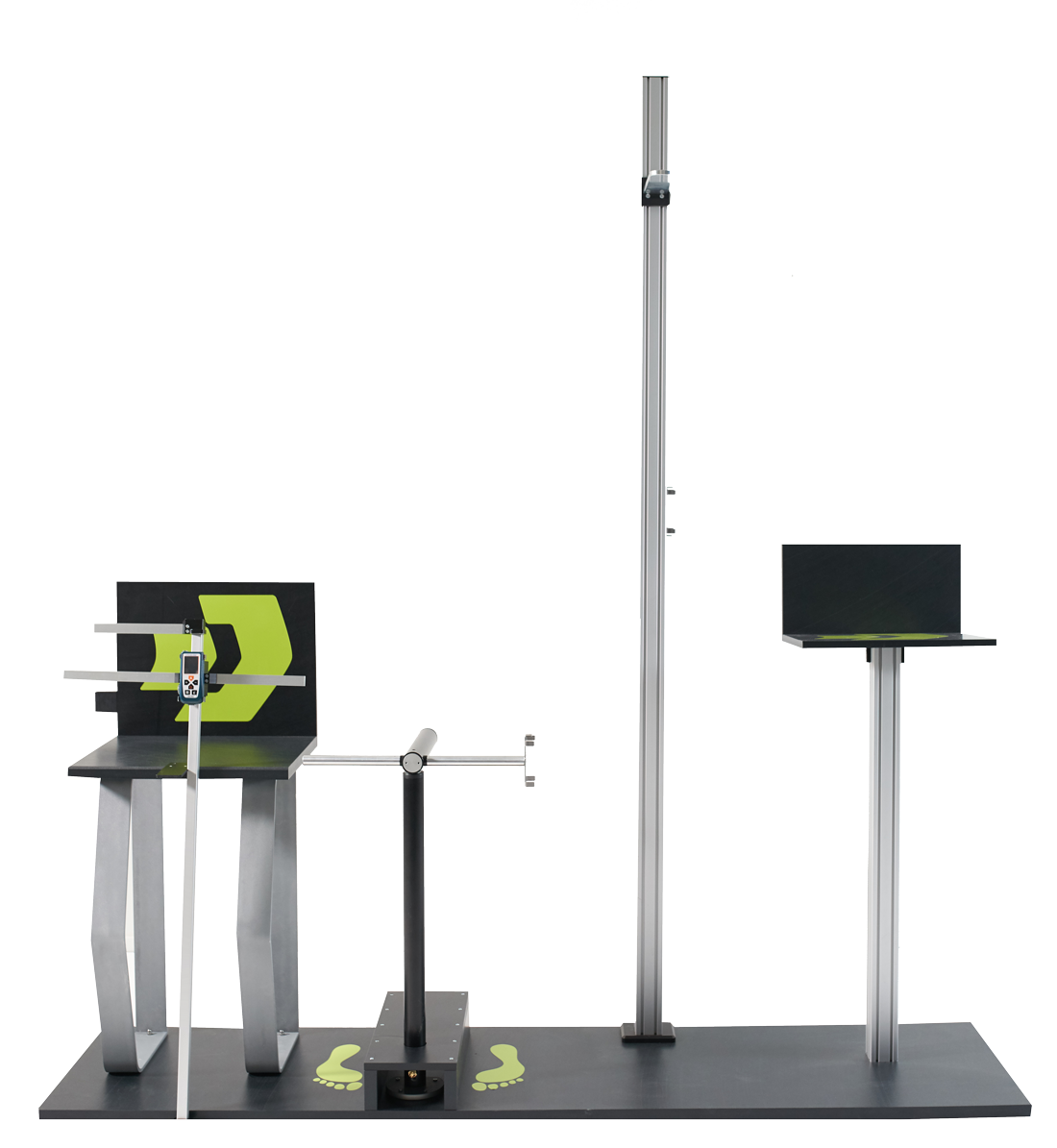

DCF DIGI FIT TOOLS
Key Features
• 2 meters wide, fits into most slat wall systems.
• Step by step guided by the DCFapp.
• Accurate and fast.
• 0.5m² base plate, 1.5m² floor area for compact version
Product Spec
• Dimension/Size:
• Weight: 24kg
Contents
• DCF Height Measurement Tool
• DCF Inseam Measurement Tool
• DCF Body Measurement Chair
• DCF Body Measurement Caliper
• DCF Digital Laser Meter (DLM)
